A real light

Next you will create Light class like the HTML / CSS Light you created, but one that is controlling a real LED light.

Your light class should have on, off, and blink member functions. The constructor Light should take in the Arduino PIN number of the light to be switched on.

What you will use

For this section you will need an Arduino micro controller. Which you will use with the johnny-five NodeJS module to program hardware components.

Project setup

In your projects folder create a new folder called LedLightFun. Change into that folder set it up as a NodeJS project folder and install the johnny-five module.

Setup the light

You will need:

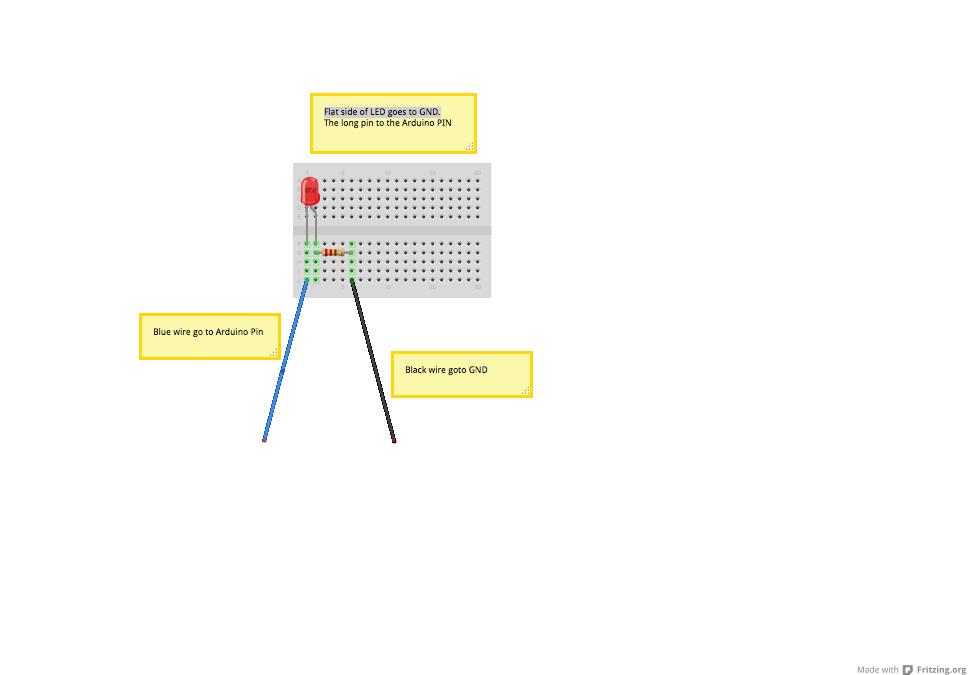

Set it up like this:

Breadboard setup

Connect your breadboard setup to your Arduino: one pin to one of the numbered pins on the board the other to the GND pin.

Try some code

You should use the Pin class from johnny-five to switch the light on or off. If a Pin is set to high the light will switch on. If the Pin is set to low the light will switch off.

Run this code:

var five = require("johnny-five");

// Create an instance of the Board class - referring to the Arduino Micro Controller 'board'
var board = new five.Board();

board.on('ready', function(){

		var pin = new five.Pin(9);

        // the light will switch on
        pin.high();

		// the light will switch off after 2 seconds
		setTimeout(function(){
	        pin.low()
		}, 2000);
});

Create a Class

Once the above example is working, create your own LedLight class to make the LED light switch on, off, or blink.

You should be able to use the light like this:

	var light = new LedLight(7);
	light.on();
	light.off();
	light.blink();

Add a counter

Add a internal counter that keeps track of how many times the light was switched on. Expose the value of the counter through a member function call on_count.

Try this:

Now add this functionality to your Light class.

Add:
